Multi-layered magnets for mom and dad with an image or emblem in the center.

Session 2

Material Testing for settings

find the settings that i want to use for 3mm basswood.

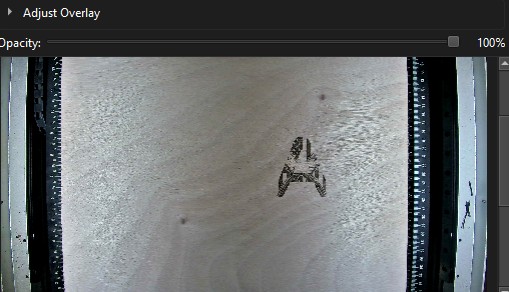

Engraving Design for the letter "A"

I ran some material test for the engraves letter A in dad. I am using 3mm Mahogany Plywood. Best setting is 6000mm/min @20 power. Overscanning 2.5% 2.50mm), Line Interval 0.1000 @254DPI. With Image Mode of Stucki. (LaserMatic 10W)

Community Feedback

Help this project improve

One response of each type per Maker
I like this0

Sign in to share this feedback.

Try this0

Sign in to share this feedback.

Great technique0I learned something0

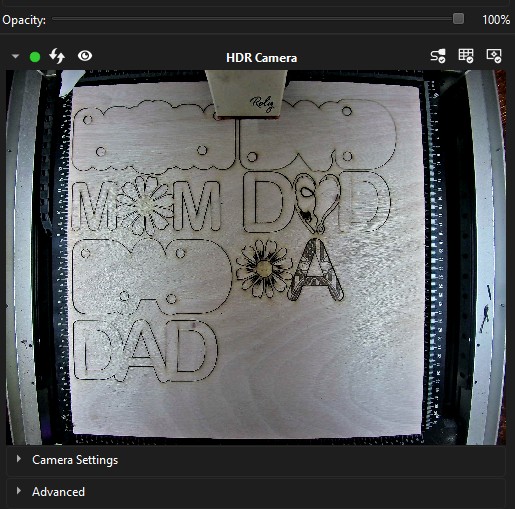

Pieces cut

Best setting to cut 3mm Mahogany Plywood for this project was 1200mm/min @80% power. 4 Passes (Constant Power). LaserMatic 30W.

Community Feedback

Help this project improve

One response of each type per Maker
I like this1

Sign in to share this feedback.

Try this0

Sign in to share this feedback.

Great technique1I learned something0
Improvement notes and suggestions
I like thisPop Pop Moose

Thank you! I appreciate the inclusion of the laser info and the settings. My laser isn't a 30W but it still gives me ideas for starting points when running my material tests. It is appreciated more than you know!

Project Discussion

Talk about this project

Ask a question, share a suggestion, or follow the maker’s progress. This discussion belongs only to Mom/Dad magnets.

Engraveit Legacy (Joe)Project Owner
0

Thank you pop pop

Engraveit Legacy (Joe)Project Owner
0

Thank you rich. I am going to start putting my settings in the project so if I ever go back to it I can see what material and settings I used.
