Material Cut Test

Completed

Laser Workshop GuildCO₂ Lasers Community

First cut test

Session 2

Second cut test

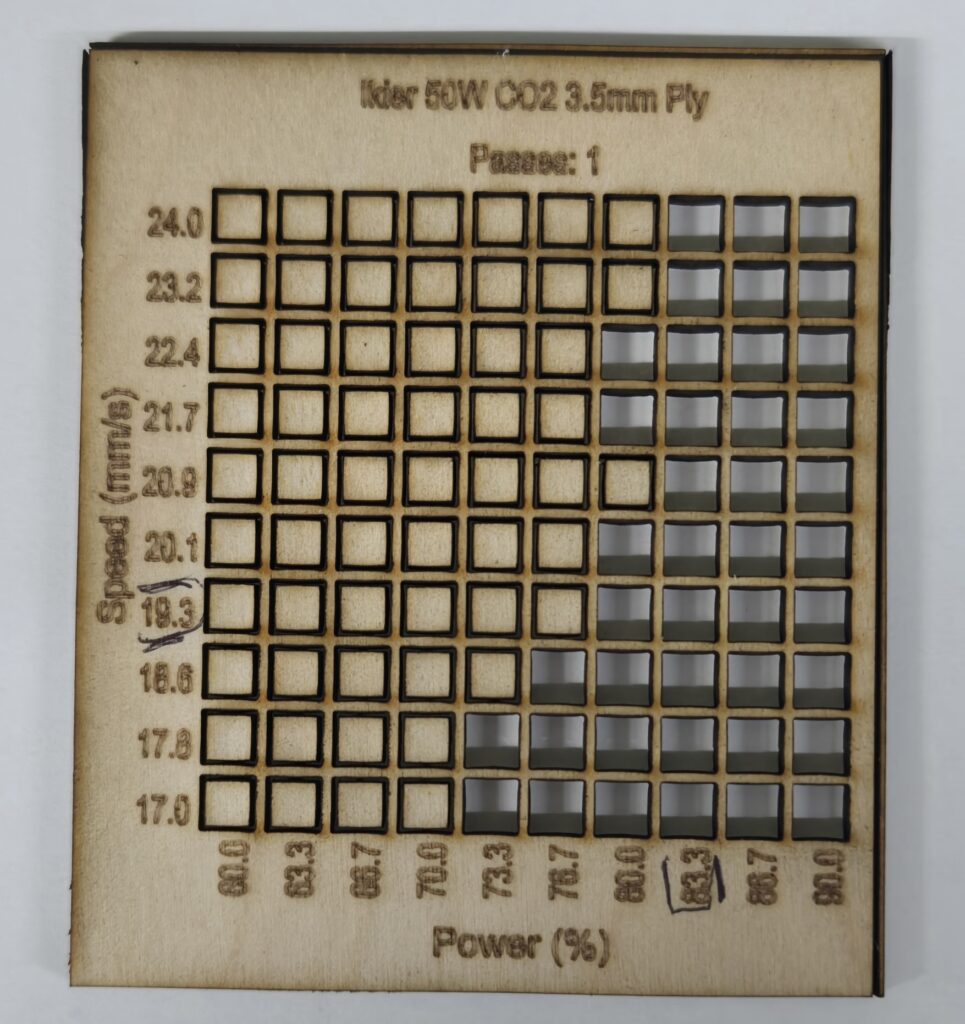

Testing 3.5mm Birch Ply

3.5 mm Birch Cut

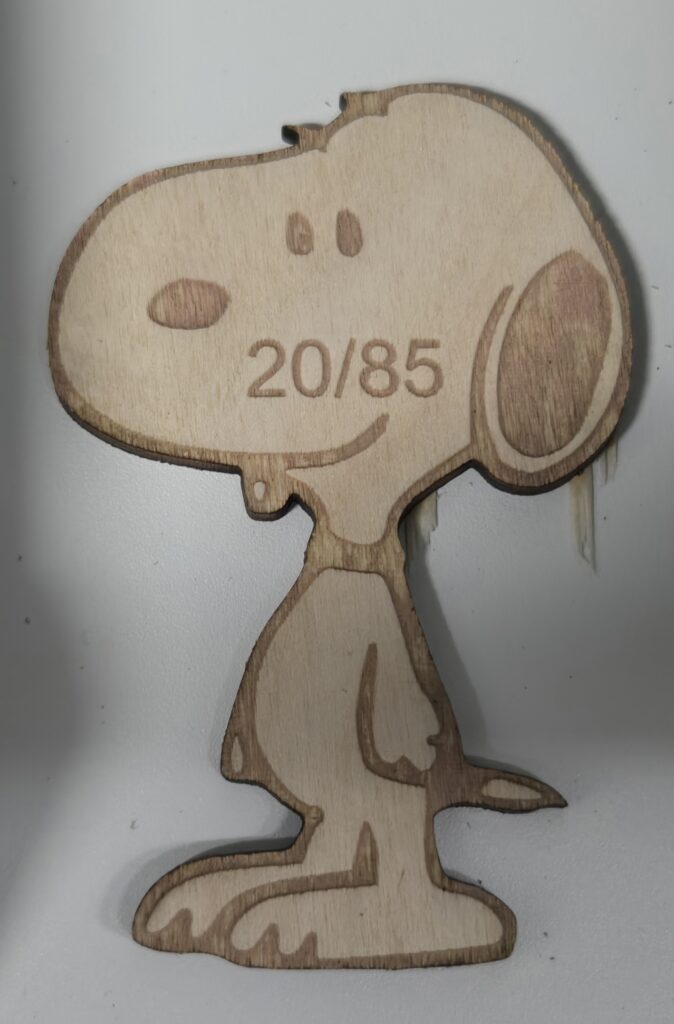

Using the material test, I chose 20 speed and 85 power and the file failed to cut cleanly.

Community Feedback

Help this project improve

One response of each type per Maker
I like this0

Sign in to share this feedback.

Try this0

Sign in to share this feedback.

Great technique0I learned something0

3.5 mm Birch Cut

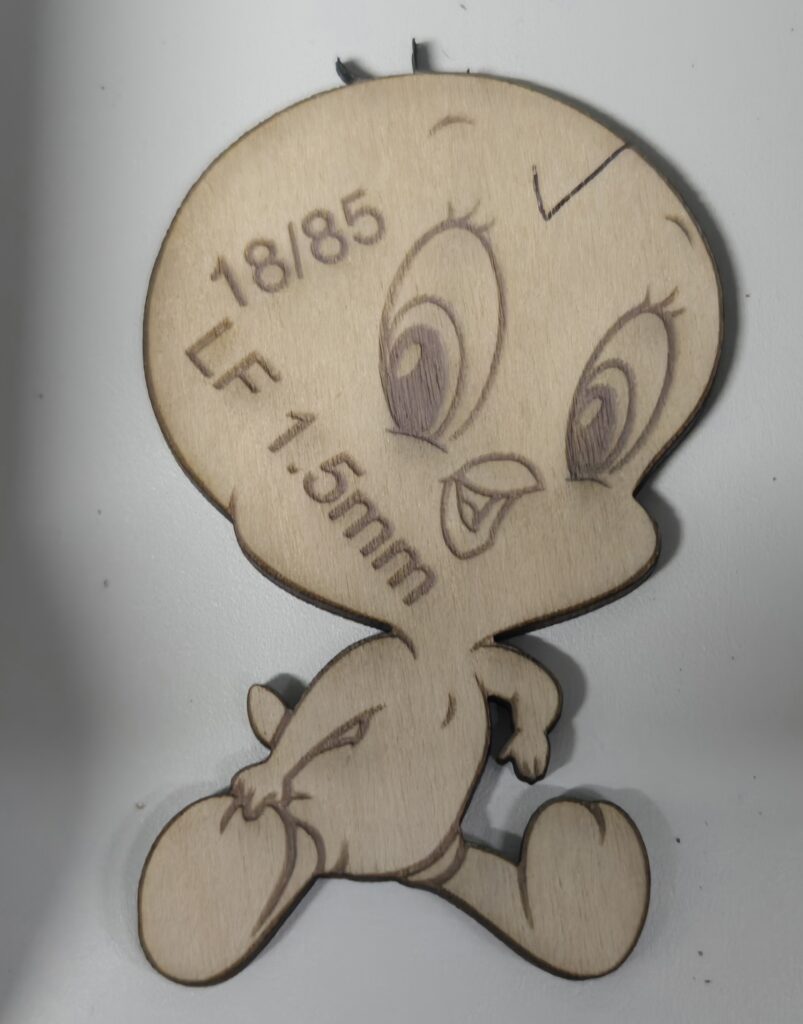

This is the 3rd cut test on 3.5mm Birch at 18 Spd and 85 Pwr with the focus lowered 1.5mm. The 2nd cut test I did at 18 Spd and 85 Pwr failed, so I lowered the focus. As you can see by the material test, it should have cut through at 20 Spd & 85 Pwr. The cutting consistency on this laser is not very good. You can see by the material test that there is no diagonal pattern that is expected.

Community Feedback

Help this project improve

One response of each type per Maker
I like this0

Sign in to share this feedback.

Try this0

Sign in to share this feedback.

Great technique0I learned something0

Project Discussion

Talk about this project

Ask a question, share a suggestion, or follow the maker’s progress. This discussion belongs only to Material Cut Test.

Hobby GuyProject Owner
1

The cutting consistency on the Ikier Master 50W CO2 laser is not very good, and substantially less than other comparable lasers. My assumption is, it likely uses a cheaper power supply and glass tube.
