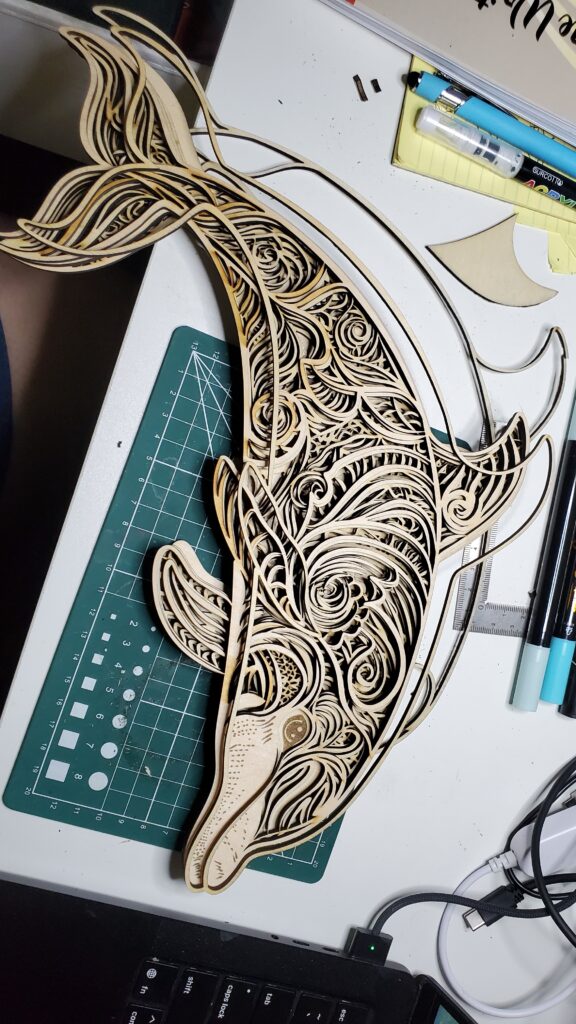

Layered Dolphins.

Completed

Laser Workshop GuildDiode Lasers Community

Using a pattern that I found on Etsy. I wanted to create a dolphin pattern to sell at a craft fair. I was drawn to this because of the thin cutouts.

Session 2

Engraving first test

Get each layer engrave/cut and record how long each layer took.

First Cut

Cutting and engraving things out-
Engrave: power 50. Speed 300
Cut: power 40. Speed 10 2 times
Layer 1 Red 30 cm x 30 xm. 4 mins
Layer 2 Green 30 cm x 30 cm 48 mins
Layer 3 Yellow 30 cm x 30 cm 49 mins
Layer 4. Purple. 30 cm x 30 cm. 42 mins
Layer 5 Pink 30 cm x 30 cm. 27 mins
Layer 6: Orange 30 cm x 30 cm. 14 mins
Layer 7: Dark green 30 cm x 30 cm 8 mins

Clean up: There are a lot of nooks and crannies where the laser might not cut all the way through. It took approximately 40 mins to clean up all 7 layers.

Community Feedback

Help this project improve

One response of each type per Maker
I like this0

Sign in to share this feedback.

Try this0

Sign in to share this feedback.

Great technique0I learned something0

Choosing colors

Choosing the correct colors to ensure the colors show through all the different layers.

Community Feedback

Help this project improve

One response of each type per Maker
I like this0

Sign in to share this feedback.

Try this0

Sign in to share this feedback.

Great technique0I learned something0

Project Discussion

Talk about this project

Ask a question, share a suggestion, or follow the maker’s progress. This discussion belongs only to Layered Dolphins..

ManCastleKing
0

Diane, did I get this right? You did the design work in Lightburn and then exported to svg so you can import in to Aliencell Space. Then, used Aliencell Space to actually control the laser. That's what I've had to do with my last few projects on the Aliencell X1.

Have you done any testing controlling the X1 with Lightburn? I've got a number of issues with it and haven't quite found the solutions yet.

Diane HollandProject Owner
1

Yes, I haven't tried X1 with LightBurn. I use LightBurn because I can adjust the settings to my liking. I feel like I have more flexibility in LightBurn than I do in the Aliencell program.
