Cutting a Jig for absolute coordinates

Completed

Laser Workshop GuildCO₂ Lasers Community

Session 1

First cut test

Cut a jig for the 0/0 position so I can use absolute coordinates in Lightburn

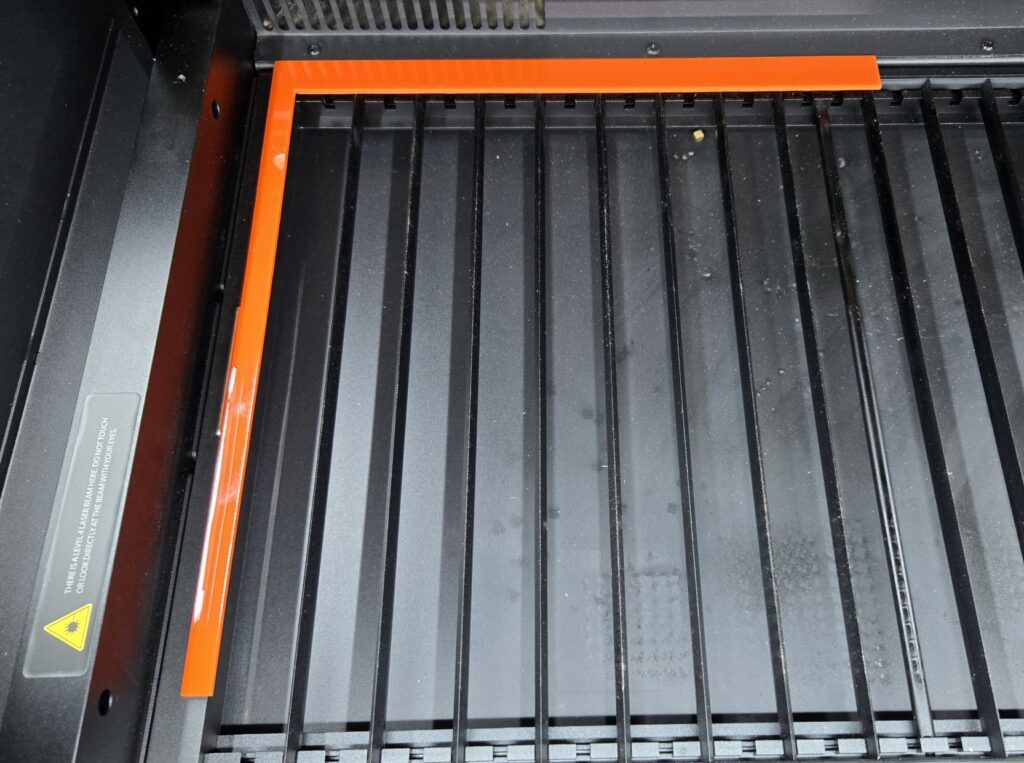

Jig for placing items at the 0/0 position in absolute coordinates in Lightburn

It worked perfectly. I used CA glue to glue the sheet of acrylic in place.

Community Feedback

Help this project improve

One response of each type per Maker
I like this0

Sign in to share this feedback.

Try this0

Sign in to share this feedback.

Great technique0I learned something0

Project Discussion

Talk about this project

Ask a question, share a suggestion, or follow the maker’s progress. This discussion belongs only to Cutting a Jig for absolute coordinates.

Hobby GuyProject Owner
0

I cut this out using a known setting from another 5W CO2 laser at 10 Spd & 46 Pwr. This is red 3mm acrylic with paper on.

Sycamore Laser
1

did you glue it to the honeycomb or to the surrounding structure? what glue? The honeycomb in my XRF shifts 3mm both X&Y. Wish it had positive pins like the Lasermatic. Your "fix" might be the answer.

Hobby GuyProject Owner
1

Yes I did, with CA glue. I first slid the acrylic into the corner where it hit a hard stop on the top and the left side and then ran the cut in Lightburn with 2 lines placed at 0/0. Then I removed it, added the CA glue to the acrylic, and placed it back in the corner. Works like a dream.

Sycamore Laser
0

Done on the XRF. This will save some guesswork. Tks Rich. Not sure how to add a photo here. Worth 1000 words:) Had no idea I could cut @ 0/0

Hobby GuyProject Owner
1

You can't add photos to the discussion.

Hobby GuyProject Owner
1

This was on the Ikier Master. It has no honeycomb. I docked the acrylic in the top left corner, 0/0.
