The Hobby Guy Workshop

Engrave tumbler

Paused

Laser Workshop GuildDiode Lasers Community

I hope to come up with some good setting for engraving tumblers. These will be for family and friends.

Session 5

Material Testing

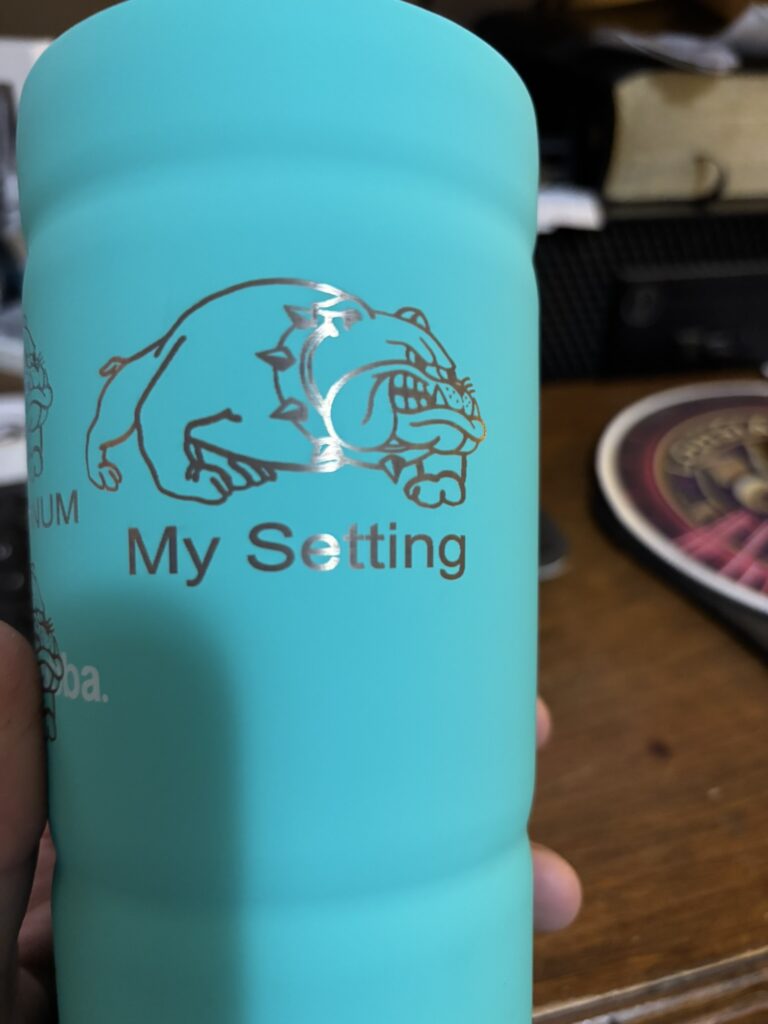

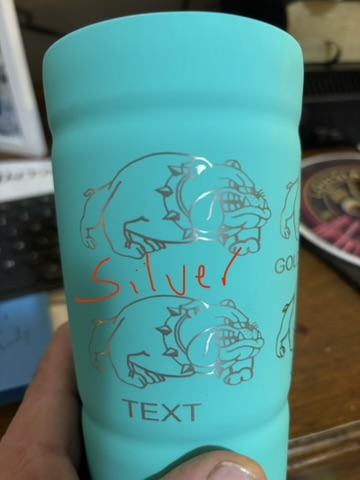

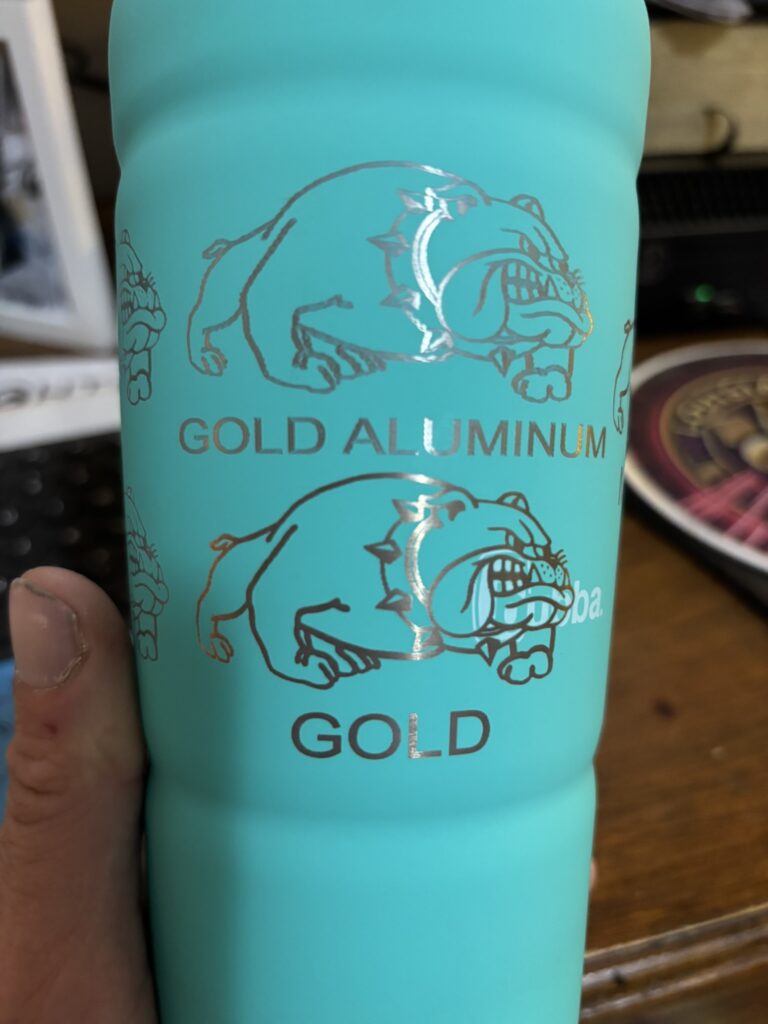

I am testing the settings that were preloaded by roly. 10W Engrave (TEXT), 3000mm/min, 100% power, Fill Mode, 5% overscanning, Line Interval .0799, LPI of 317.90. (SILVER), 2700mm/min, 100% power, Fill mode, 5% overscanning, .0782 LI, LPI of 324.81. (GOLD ALUMINUM), 1600mm/min, 80% Power, Offset Fill Mode. And Last but not least (GOLD), 900mm/min, 70% Power, Fill mode, 5% overscanning, LI .0794, LPI 319.90

FOUR DIFFERENT TESTS

None of them came out gold or silver per say. But the settings came out pretty good. So, it is hard to decide on just one.

Community Feedback

Help this project improve

One response of each type per Maker
I like this0

Sign in to share this feedback.

Try this0

Sign in to share this feedback.

Great technique0I learned something1

Project Discussion

Talk about this project

Ask a question, share a suggestion, or follow the maker’s progress. This discussion belongs only to Engrave tumbler.

Sycamore Laser
0

this from Hobby Guys library for the 10W. Sp 6.8mm/sec, Pwr 96%, .08 line int. If i've done tumblers on the Roly it's been awhile. Can't find any notes. for 30W try 20mm/sec, 70%, same LI .08 my Roly roller rotary works great.

Engraveit Legacy (Joe)Project Owner
1

Thank you for that information. i have done it once when i first got my lasermatic. but never saved the settings cause didnt know how.

Sycamore Laser
0

I'm wondering is your tumbler made of aluminum or stainless steel? The colors you mention would only be achieved on clean Stainless steel. (pdr coat removed first) Somebody correct me if I'm wrong.
