Engrave tumbler

Paused

Laser Workshop GuildDiode Lasers Community

I hope to come up with some good setting for engraving tumblers. These will be for family and friends.

Session 4

Material Session

Got another setting to try thanks to a co-bata tester.

new setting to try.

Trying to up my speed to 550 mm/min and adding a cross hatch.

Community Feedback

Help this project improve

One response of each type per Maker
I like this0

Sign in to share this feedback.

Try this0

Sign in to share this feedback.

Great technique0I learned something0

new setting 2

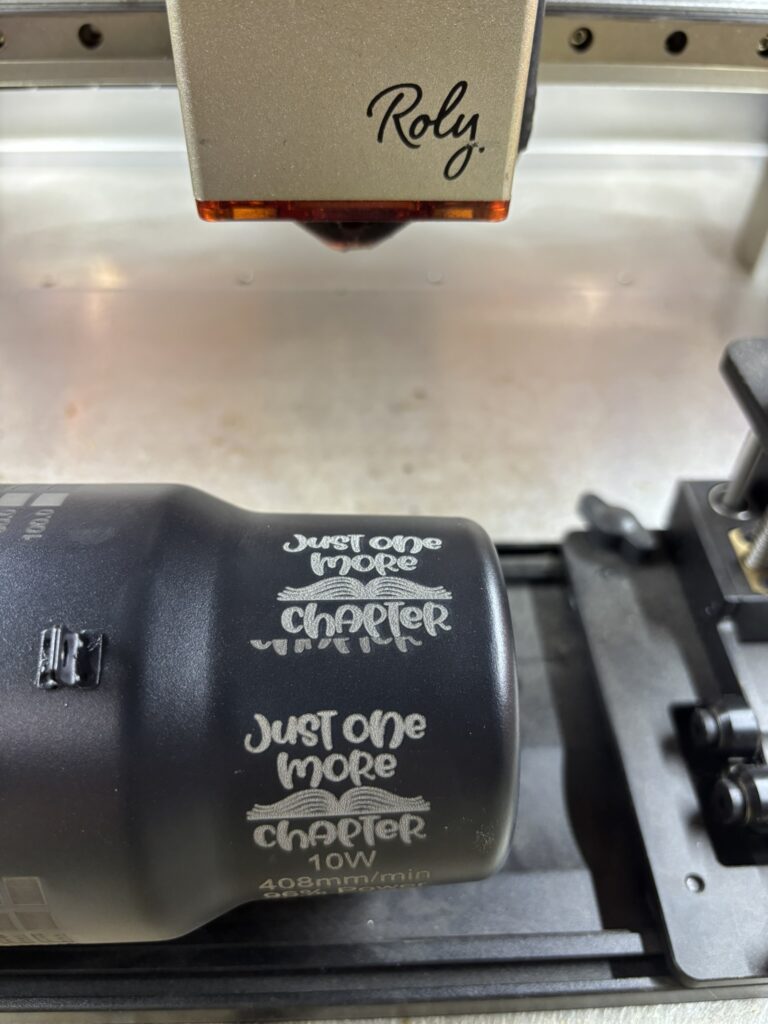

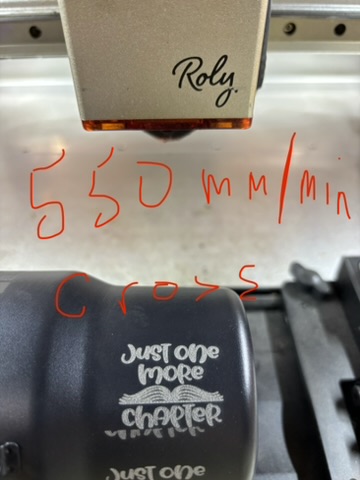

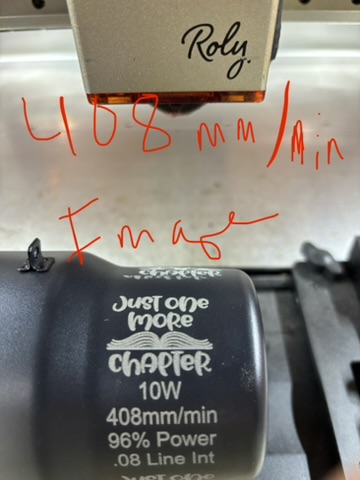

the 550mm/min 96% power with the cross-hatch def made it come out whiter than the setting of 408mm/min with 96% power. Also to get the cross hatch I had to trace the image as when I did the original settings it what as an image. Original settings it was a little grayish whiteish. But speeding it up made it come out white. I am going to do some more testing on this one. Because there are some presets with my lasermatic that I want to try as well. See attached pictures.

Community Feedback

Help this project improve

One response of each type per Maker
I like this0

Sign in to share this feedback.

Try this0

Sign in to share this feedback.

Great technique1I learned something0

Project Discussion

Talk about this project

Ask a question, share a suggestion, or follow the maker’s progress. This discussion belongs only to Engrave tumbler.

Sycamore Laser
0

this from Hobby Guys library for the 10W. Sp 6.8mm/sec, Pwr 96%, .08 line int. If i've done tumblers on the Roly it's been awhile. Can't find any notes. for 30W try 20mm/sec, 70%, same LI .08 my Roly roller rotary works great.

Engraveit Legacy (Joe)Project Owner
1

Thank you for that information. i have done it once when i first got my lasermatic. but never saved the settings cause didnt know how.

Sycamore Laser
0

I'm wondering is your tumbler made of aluminum or stainless steel? The colors you mention would only be achieved on clean Stainless steel. (pdr coat removed first) Somebody correct me if I'm wrong.
