3D Illusion Image experimentation based on Rich’s Live Stream

Completed

Laser Workshop GuildDiode Lasers Community

I hope to create a 3D Illusion project that looks as good as the projects that Rich created in his Live Stream

Session 4

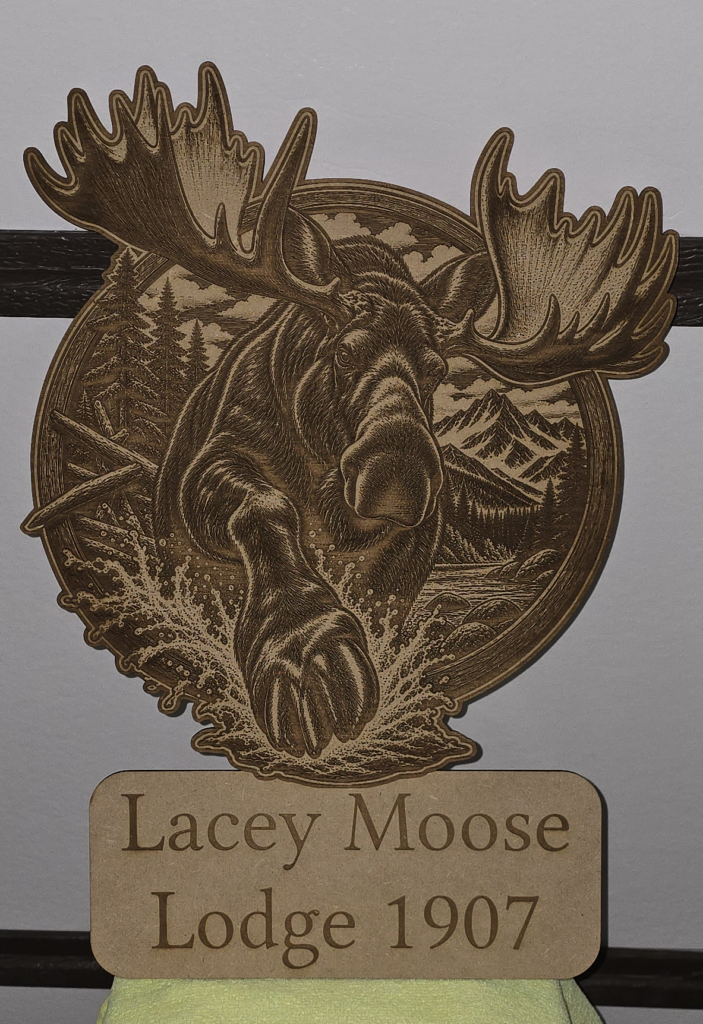

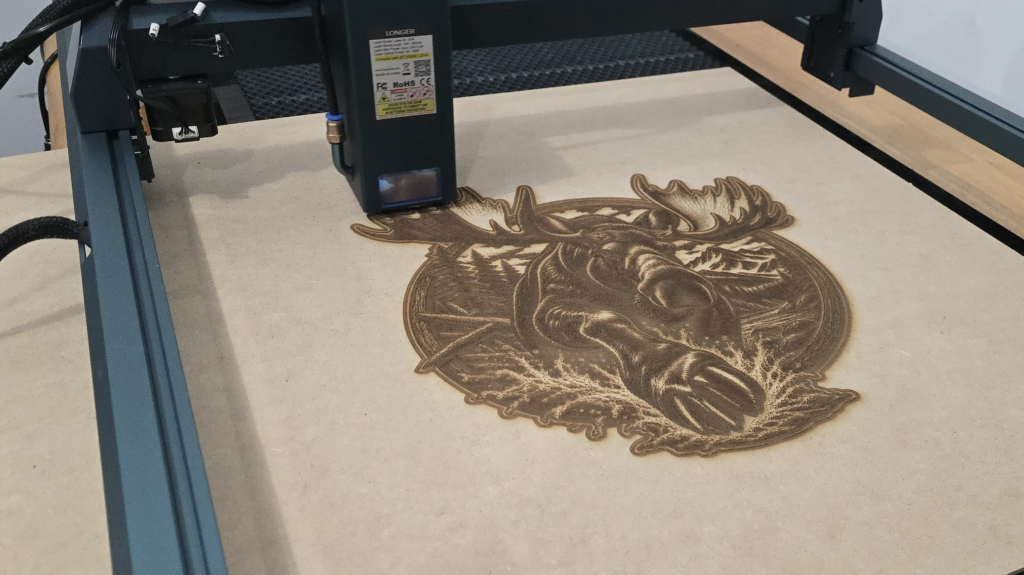

The Large Moose. I made him. I like the results but the time estimate error was insane!

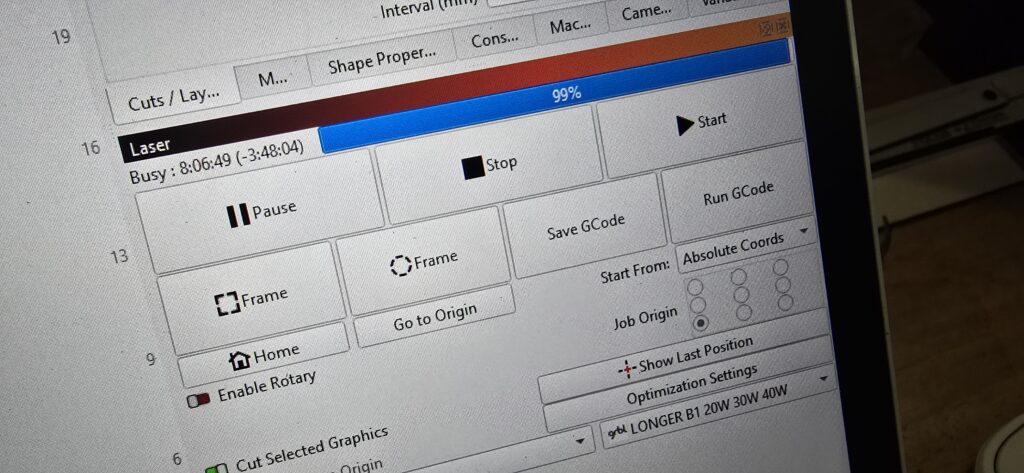

I changed the setting "Fill Shapes Individually" to "Fill All Shapes At Once" on my text layer and brought the time down from just over 5 hours to 4 hours 18 minutes. I was thrilled with this improvement. Until I ran it! I think the project came out pretty nicely, but the time was way, way off! Expecting it to still run 5 hours because the time estimates are always off, I was floored with how long it actually took! It finally finished at midnight. Total run time 8 hours 11 minutes. Again, I like the result but was floored with the time! I'm going to research the time issue and I'll post whatever I find out.

The Large Moose. I made him. I like the results but the time estimate error was insane! — Starting Files

Photos and project files added when this Project Session was created.

Community Feedback

Help this project improve

One response of each type per Maker
I like this0

Sign in to share this feedback.

Try this0

Sign in to share this feedback.

Great technique1I learned something0

Project Discussion

Talk about this project

Ask a question, share a suggestion, or follow the maker’s progress. This discussion belongs only to 3D Illusion Image experimentation based on Rich's Live Stream.

Engraveit Legacy (Joe)
0

What size are you trying to do? That might be why it would take so long.

Pop Pop MooseProject Owner
0

The size difference is definitely why the new project will take so long. The original was on 4" by 4.3" and the big one for the Moose Lodge will be quite a bit bigger. 12.5" by 18" approximately. I'm looking at a 5 hour project.

Engraveit Legacy (Joe)
0

Yea the size definitely would make it take longer. All the stuff I have been doing with the 3D effect have been small. I would love to see how it turns out as a bigger peice. Look forward to the finished product.

Pop Pop MooseProject Owner
0

I just need to get 5+ hours uninterrupted. Between spending time with family and Drs appointments, it's just the time constraints.

Engraveit Legacy (Joe)
0

yea when I have a long burn and don't have other projects to work on in Lightburn I tend to go and other things around the house and check ok it every few minutes. is this a commissioned piece you are doing or just something you are doing for them?

Engraveit Legacy (Joe)
0

Also, if you wanted to export that file I would like to see if maybe I can shorten you burn time for you so that it's not 5 hours? if you would like?

Pop Pop MooseProject Owner
Edited0

Thank You Joe, I just saw your comments here. I realize I can speed it up by changing my power and speed because I wasn't running at the maximum speed the laser can run.

I ran the large moose but the estimated time was way off. I am trying everything I can think of to get the time estimate right. I re-read from the controller, figuring maybe something got glitched with the updates. The numbers were a little bit off. The new time estimate was 5:29. Still a far cry from 8:11.

Edit: Now I'm really confused! I changed the speed of the laser from 26,000 mm/min to 36,000 mm/min, on both the photo layer and the text layer, just to see how much time it would say I cut down. It actually added 20 minutes to the estimated time.

Edit #2: I went on the Lightburn forum and it was suggested to set Cut Speed Scale and Global Speed Scale both to 200%. That should have made the estimated time approximately double. It actually took 20 seconds off.

Engraveit Legacy (Joe)
0

Well I am glad that you were able to get it done. Also I really like the final product. Amazing!!!!!
