I am hoping to dial in a 3D illusion on TrueFlat plywood.

Session 1

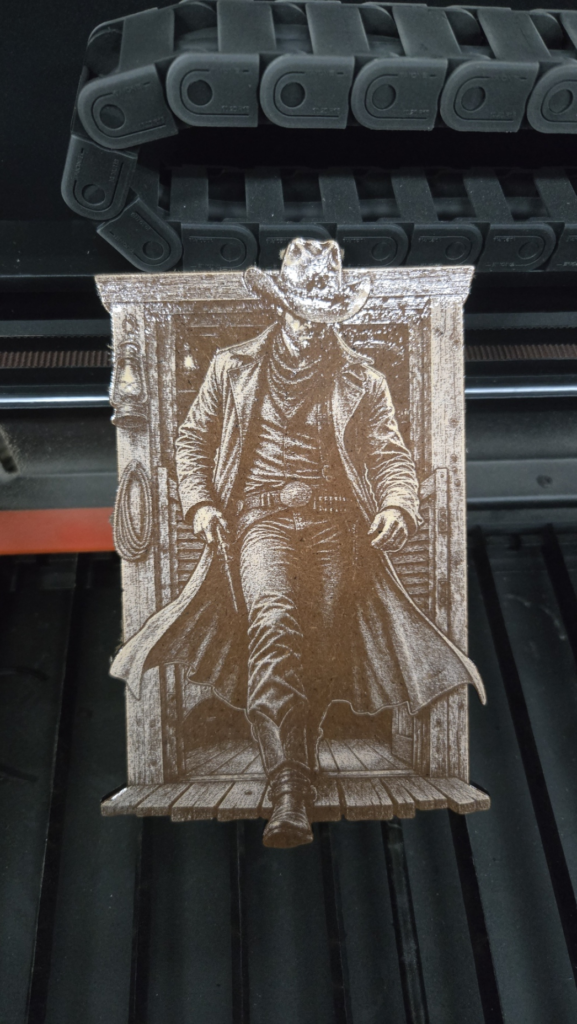

Final settings dialed in

I spent the day dialing in settings on the Ikier Master CO2 laser. After several tries that I did not document here with differing speeds, power and passes. I finally got the settings dialed in. For this project, I knew I would finish it in one day, which is why there is only one session. The final settings were:
400 mm/sec speed
40% Power
450 LPI, Jarvis for the image
For the cut, 22 speed, 2 passes
My custom setting for 3D images in the Adjust Settings window (It's applied in the file)
Rinsed the dust and debris with water

Final settings dialed in — Starting Files

Photos and project files added when this Project Session was created.
